The protective layer on cable trays must meet minimum thickness requirements to ensure corrosion resistance and durability, typically defined by standards such as IEC 61537 and NEMA guidelines.

Protective Layer Purpose

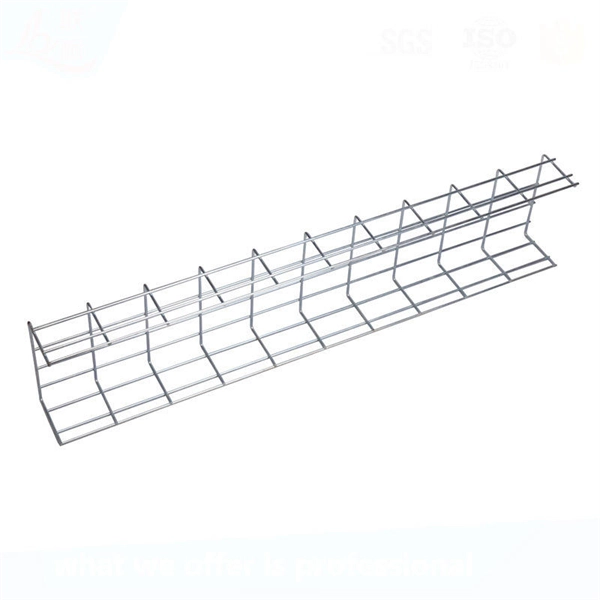

The protective layer on cable trays serves to prevent corrosion, extend service life, and maintain electrical safety. Common protective methods include hot-dip galvanization, zinc coating, powder coating, and anodized aluminum finishes. The choice of coating depends on the material of the tray (steel, stainless steel, aluminum) and the environmental conditions such as indoor, outdoor, or corrosive zones .

Typical Thickness Requirements

• Hot-dip galvanized steel trays: The zinc coating thickness is usually 85–100 microns (3.3–3.9 mils) for standard indoor environments, and up to 200 microns (7.9 mils) for highly corrosive or outdoor environments .
• Electro-galvanized steel trays: Typically 15–25 microns (0.6–1 mil), suitable for less aggressive environments .
• Powder-coated trays: Coating thickness generally ranges from 60–120 microns (2.4–4.7 mils), providing both corrosion protection and aesthetic finish .
• Aluminum trays: Naturally form a thin oxide layer (alumina) of 5–10 microns, which provides corrosion resistance; anodizing can increase this to 15–25 microns for harsher conditions .

Standards and Testing

• IEC 61537 specifies that cable trays must undergo coating thickness tests to ensure durability and corrosion resistance under environmental exposure .
• Salt spray tests are commonly used to verify the protective layer's effectiveness, especially for outdoor or marine installations .
• Compliance with NEMA VE 1 or UL 870 may also dictate minimum coating thicknesses for steel trays in North America .

Environmental Considerations

• Indoor, dry environments: Minimum protective layer thickness can be lower, as corrosion risk is minimal.
• Outdoor or industrial environments: Thicker coatings are required to resist moisture, chemicals, and UV exposure.
• Marine or highly corrosive zones: Hot-dip galvanization with maximum thickness or additional powder coating is recommended .

Summary

The protective layer thickness is critical for cable tray longevity and safety. Designers and installers should select coatings based on material, environment, and applicable standards, ensuring that trays meet IEC 61537, NEMA, or UL requirements. Regular inspection and maintenance are also recommended to monitor coating integrity over time .
