Fiber optic terminal boxes typically require single-mode or multimode fiber optic cables terminated with connectors such as LC, SC, ST, or MPO/MTP, depending on the network setup and distance requirements.

Fiber Optic Cable Types

Fiber optic terminal boxes can accommodate single-mode or multimode fiber cables:

• Single-mode fiber (SMF): Has a small core (~9 µm) and is ideal for long-distance, high-bandwidth transmission. Commonly used by telecoms, CATV, and educational institutions for FTTH networks .
• Multimode fiber (MMF): Has a larger core (50 µm or 62.5 µm) suitable for short-distance applications like LANs and audio-visual networks. It supports multiple light modes but is more prone to dispersion and attenuation . Cables can be simplex (single strand) or duplex (two strands for bidirectional communication), depending on whether the network requires one-way or simultaneous two-way data transmission .

Connector Types

The choice of connector depends on the terminal box and network equipment:

• LC (Lucent Connector): Small 1.25 mm ferrule, latch-style, ideal for high-density panels and SFP modules .
• SC (Subscriber Connector): 2.5 mm ferrule, push-pull mechanism, widely used in FTTH and GPON networks .
• ST (Straight Tip): Bayonet twist-lock, often used in legacy or industrial networks .
• FC (Ferrule Connector): Threaded coupling, secure in high-vibration environments .
• MPO/MTP: Multi-fiber push-on/pull-off connectors for high-speed, high-density applications . Connectors may also have polish types such as UPC (Ultra Physical Contact) or APC (Angled Physical Contact), which affect return loss and signal quality .

Installation Considerations

• The fiber optic cable is spliced to pigtails inside the terminal box, which then connects to the distribution frame or network equipment .

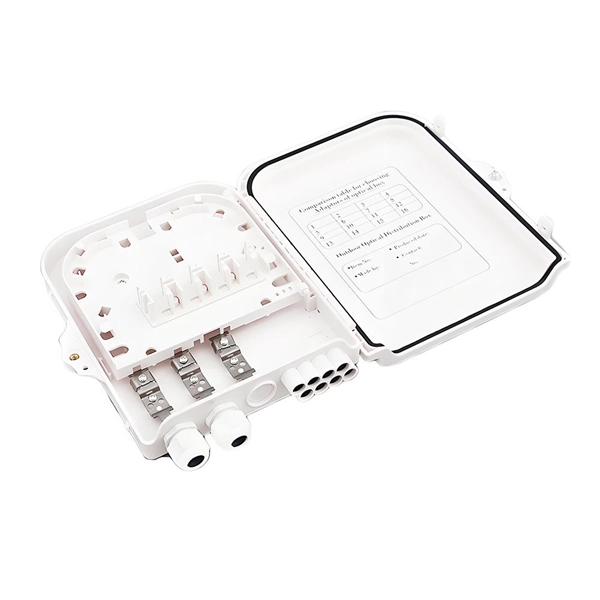

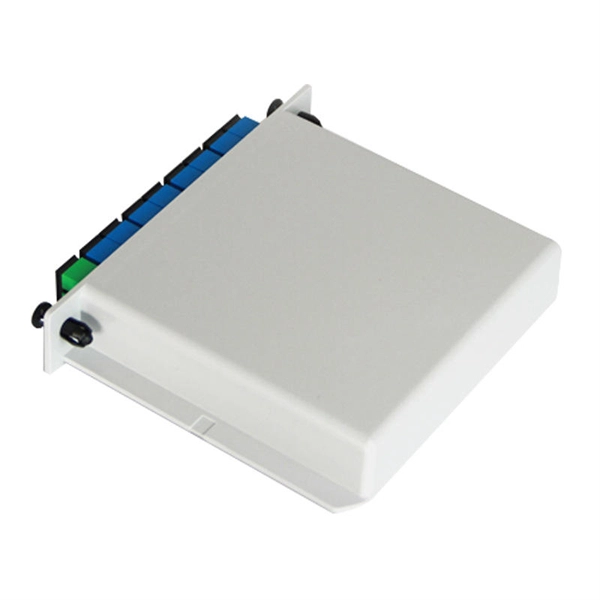

• Terminal boxes come in various configurations (e.g., 2 in/8 out, 4 in/24 out) and can be wall-mounted, desktop, or rack-mounted .
• Ensure the connector type matches the equipment and the fiber mode (single-mode or multimode) to maintain low insertion loss and high performance .

Summary

To connect a fiber optic terminal box, you need:

1. Single-mode or multimode fiber optic cable depending on distance and bandwidth requirements.
2. Simplex or duplex configuration based on network design.
3. Compatible connectors (LC, SC, ST, FC, MPO/MTP) with appropriate polish type (UPC or APC).
4. Proper splicing or patching inside the terminal box to link the incoming fiber to pigtails and network equipment. Choosing the correct combination ensures reliable, high-speed, and low-loss optical connections for your network.
