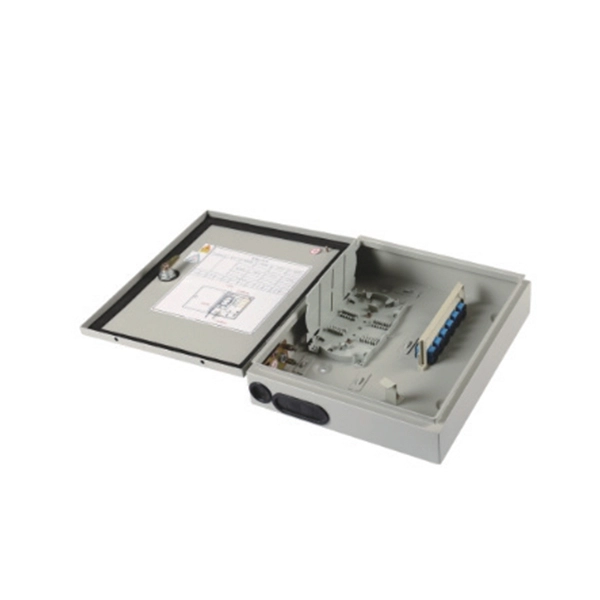

A State Grid Fiber Optic Distribution Box (FDB) is a secure, durable enclosure designed to terminate, splice, and distribute optical fibers in FTTH and FTTx networks.

Purpose and Function

The fiber optic distribution box serves as a central point for managing incoming and outgoing fiber cables, providing mechanical protection, organized splicing, and termination of optical fibers. It ensures proper routing, strain relief, and bend radius control, which is critical for maintaining signal quality and network reliability in both indoor and outdoor deployments . These boxes are commonly used in fiber-to-the-home (FTTH) networks to distribute connections to multiple households and can include splitters for signal distribution .

Technical Specifications

• Capacity: FDBs are available in configurations supporting 1 to 96 fiber ports or more, with recommended headroom of 20–30% for future expansion .
• Materials: High-impact ABS+PC or SMC materials are used for durability, UV resistance, and mechanical protection. ABS is suitable for indoor use, while SMC is ideal for outdoor or industrial environments .
• Ingress Protection (IP) Rating: Typically IP65 or higher, ensuring dustproof and waterproof protection for outdoor installations .
• Splice Protection: Equipped with splice trays or cassettes to secure fiber splices and prevent damage .
• Fiber Management: Includes guides and adapters for proper routing of 250µm and 900µm fibers, color-coded according to standards for easy identification .
• Ventilation and Security: Designed to prevent moisture buildup and unauthorized access, often with lockable doors and robust closures .

Installation and Deployment

State Grid FDBs can be installed on walls, poles, or inside cabinets, depending on network requirements. They are suitable for indoor, outdoor, and industrial environments, providing flexibility for different deployment scenarios . Proper installation ensures physical security, environmental protection, and network stability.

Scalability and Maintenance

These boxes are designed for easy expansion, allowing additional splice trays or ports to be added as the network grows. Clear labeling, color-coded fibers, and documentation facilitate maintenance, troubleshooting, and future upgrades .

Summary

The State Grid Fiber Optic Distribution Box is a critical component in optical fiber networks, combining durability, environmental protection, and efficient fiber management. It supports scalable FTTH and FTTx deployments, ensuring reliable signal distribution, secure splicing, and long-term network performance .
