Optical cable performance is defined by key parameters including attenuation, dispersion, wavelength, mechanical robustness, and environmental tolerance.

Optical Performance Parameters

Attenuation (Optical Loss): Measures the reduction in signal power as light travels through the fiber, expressed in dB/km. Lower attenuation ensures longer transmission distances without signal degradation . Chromatic Dispersion: Describes the spreading of light pulses over distance due to different wavelengths traveling at different speeds. It affects high-speed and long-distance transmission, particularly in single-mode fibers . Polarization Mode Dispersion (PMD): Variation in propagation speed between polarization modes, critical for high-data-rate systems . Wavelength: Determines compatibility with fiber type (single-mode or multimode) and affects transmission distance. Common wavelengths include 850 nm, 1310 nm, and 1550 nm . Mode Field Diameter and Core Concentricity: Influence coupling efficiency and signal uniformity, especially in single-mode fibers . Macrobending Loss: Signal loss due to fiber bending, important for installation in tight spaces .

Mechanical and Physical Parameters

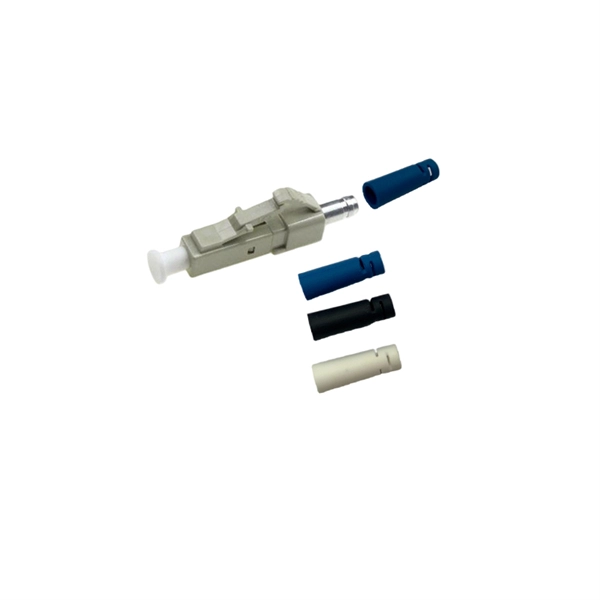

Tensile Strength and Crush Resistance: Ensure the cable withstands installation stress and long-term mechanical loads . Flexibility and Bend Radius: Minimum bend radius specifications prevent excessive signal loss during installation . Connector and Endface Quality: Low insertion loss and return loss are achieved through proper polishing and alignment of connectors .

Environmental and Reliability Parameters

Temperature Range: Cables must maintain performance across operational and storage temperature extremes . Moisture and UV Resistance: Outdoor cables require protection against water ingress and sunlight degradation . Fire Performance: Indoor cables must meet fire safety standards to prevent flame propagation . Long-Term Stability: Parameters like attenuation and dispersion should remain stable over the cable's lifetime .

Testing and Compliance

Optical cables are tested using optical loss test sets (OLTS), OTDR, and encircled flux-conditioned launches to verify attenuation, polarity, and link integrity . Compliance with standards such as IEC 60794, ITU-T G.652, and TIA-568 ensures interoperability and reliable performance . By evaluating these parameters, network designers can select optical cables that meet the required data rate, distance, and environmental conditions, ensuring efficient and reliable fiber optic communication.
