1G optical devices, such as SFP transceivers, require careful handling, proper insertion, and adherence to safety and configuration guidelines to ensure optimal performance and compliance.

Safety Precautions

1. Laser Safety: 1G optical modules are Class 1 laser products. Avoid direct eye exposure to the laser beam and do not use magnifying instruments to view the optical output, as this can concentrate the laser radiation and cause injury .
2. Handling: Always use the connector housing to plug or unplug fiber connectors. Never touch the end face of the fiber to prevent contamination or damage .
3. Electrical Safety: Be aware of electrical hazards when working with active devices. Follow standard practices to prevent accidents and ensure the device is powered off before insertion or removal if required .

Installation Instructions

1. Protect Connectors: Keep protective caps on fiber-optic connectors when not in use to prevent dust contamination .
2. Insertion: Insert the 1G optical module into the compatible SFP port of the network device until it clicks. Ensure proper alignment and secure connection .

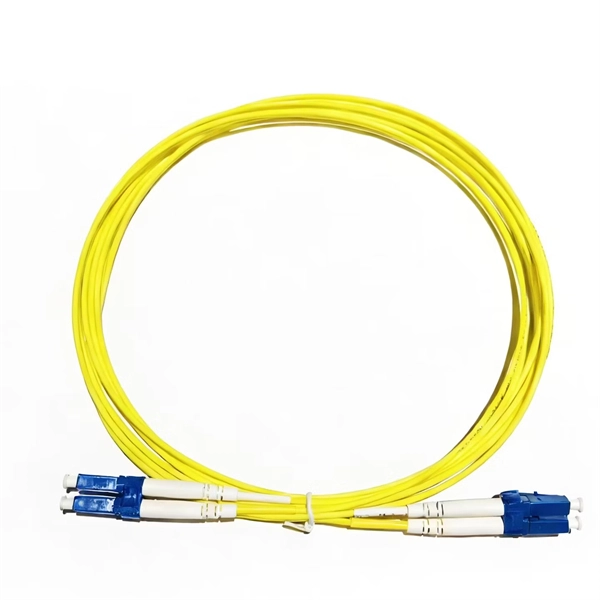

3. Connector Types: Use LC/PC or LC/UPC connectors for fiber connections. Avoid LC/APC connectors unless specified, as they can degrade performance .
4. Copper Connections: For SFPs with RJ-45 interfaces, ensure proper termination and inspection of the Ethernet cable before connection .

Configuration and Operation

1. Device Settings: Access the network device's configuration interface to adjust parameters such as transmission power, frequency, and receive sensitivity to match the optical module specifications .
2. Diagnostics: Many 1G SFPs provide digital diagnostic monitoring (DDM) via a 2-wire serial interface (SCL, SDA) to monitor transmitted power, received power, bias current, supply voltage, and temperature .
3. Loopback and Testing: For FPGA or custom applications, 1G Ethernet can be implemented using GPIO with Clock and Data Recovery (CDR) or transceivers. Use reference designs or demo files to verify loopback and signal integrity .

Maintenance and Best Practices

1. Cleaning: Always inspect and clean connectors before making a connection. Use appropriate fiber cleaning tools to maintain signal quality .
2. Hot-Plugging: SFP modules support hot-plugging. Follow the pin engagement sequence and ensure TX Fault and TX Disable pins are correctly pulled up or down as specified .
3. Cabling: Use recommended cables from the manufacturer to ensure optimal range and performance. Third-party cables may cause damage or reduce performance .
4. Storage: Store unused modules in a dust-free environment with protective caps in place .

Compliance

1. Regulatory: Ensure devices comply with FCC Class A or B limits for electromagnetic interference. Improper installation may cause harmful interference in residential or commercial environments .
2. Return and Warranty: Do not open the module except under authorized guidance. For internal component failures, obtain a return material authorization (RMA) through the manufacturer . By following these instructions, 1G optical devices can be safely installed, configured, and maintained to achieve reliable high-speed data transmission and long-term operational efficiency.
