Fixed cable trays should be selected based on material, environment, load requirements, and mounting method, with steel, stainless steel, aluminum, and wire mesh being common options.

Types of Fixed Cable Trays

1. Ladder Cable Trays: Ideal for heavy-duty cables and long spans, providing excellent ventilation and support for large bundles of power cables .
2. Solid Bottom Trays: Suitable for sensitive cables requiring protection from dust, debris, or electromagnetic interference .

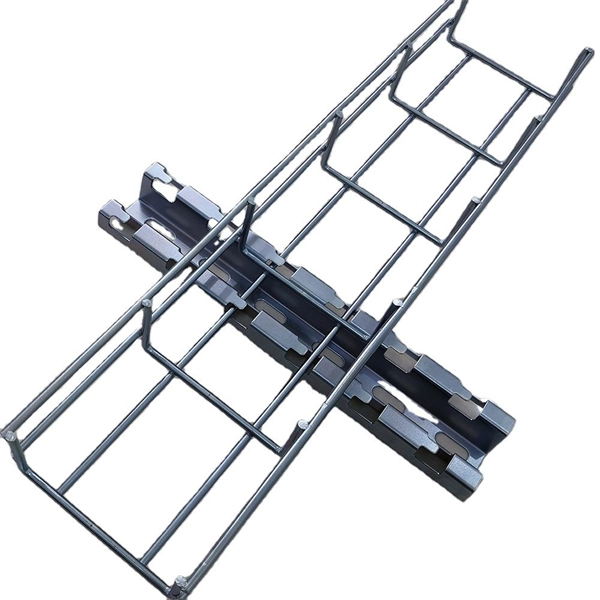

3. Wire Mesh or Basket Trays: Flexible and lightweight, allowing easy routing and modifications; best for data and communication cables .
4. Channel or Trough Trays: Used for smaller cable runs or where partial protection is needed .

Material Selection

• Steel: Strong and cost-effective; can be pre-galvanized or hot-dip galvanized for corrosion resistance .
• Stainless Steel (AISI 316L): High corrosion resistance, suitable for harsh or chemical environments .
• Aluminum: Lightweight, corrosion-resistant, and easy to handle; ideal for atmospheric exposure .
• FRP (Fiberglass Reinforced Polyester): High resistance-to-weight ratio and good corrosion resistance in aggressive environments .

Mounting and Fixing Options

• Wall-Mounted Brackets: Secure trays against walls, prevent sagging, and allow easy adjustments .
• Ceiling-Mounted Supports: Use threaded rods or hangers to suspend trays, keeping cables organized and accessible .
• Floor-Mounted Bases: Suitable for industrial areas with heavy-duty cables or limited wall/ceiling space .
• Suspended Rods and Tray Hangers: Provide additional support for heavy cable loads and maintain proper height .
• Surface-Mounted Fixing: Direct mounting to floors or surfaces using brackets or clips for easy access .

Best Practices

• Ensure compliance with BS EN 61537 or equivalent standards for cable support systems .
• Use compatible components (trays, fittings, supports) as a system to maintain mechanical integrity .
• Consider environmental factors such as humidity, chemical exposure, and temperature when selecting materials .
• Maintain proper spacing and support intervals to prevent sagging and allow for thermal expansion .
• Use accessories like mounting clamps, cable tie mounts, and tray hangers to secure cables and prevent movement . By carefully selecting the tray type, material, and mounting method, fixed cable trays can provide a durable, safe, and efficient solution for managing electrical and communication cables in industrial and commercial installations.
