To connect fiber optic cables to a panel socket, carefully prepare, clean, and insert the fiber connector into the appropriate adapter in the socket, ensuring proper alignment and avoiding contamination.

Step 1: Identify the Connector and Socket Type

Determine the type of fiber connector (e.g., LC, SC, ST) and ensure it matches the panel socket or wall outlet adapter . Single-mode fibers often use APC or UPC connectors, while multi-mode fibers typically use standard UPC connectors. Using the correct type ensures minimal signal loss and proper fit.

Step 2: Prepare the Fiber Cable

• Strip the outer jacket of the fiber cable using a fiber optic stripper to expose the glass core .
• Clean the fiber with isopropyl alcohol and lint-free swabs to remove dust, oils, or debris .
• Inspect the fiber end-face under a microscope to ensure it is free of defects or contamination .

Step 3: Cleave the Fiber (if required)

For splicing or connector termination, cleave the fiber to produce a precise, perpendicular end-face. Use a fiber cleaver and follow manufacturer specifications for optimal cleave length (typically around 16mm for splicing) . Proper cleaving prevents signal loss and ensures a reliable connection.

Step 4: Insert the Fiber Connector

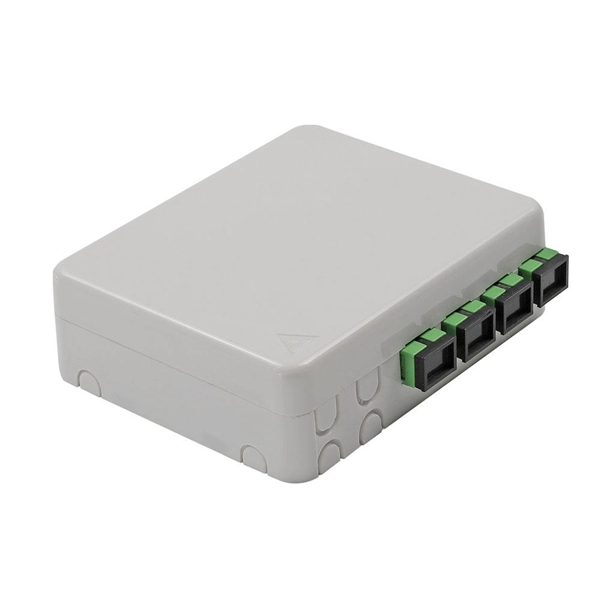

• Align the connector with the adapter in the panel socket or wall outlet .
• Gently push the connector into the adapter until it clicks or seats firmly. Avoid bending the fiber beyond its minimum bend radius to prevent damage .
• For angled connectors (APC), ensure the angle matches the adapter orientation to maintain low reflection loss .

Step 5: Secure and Test the Connection

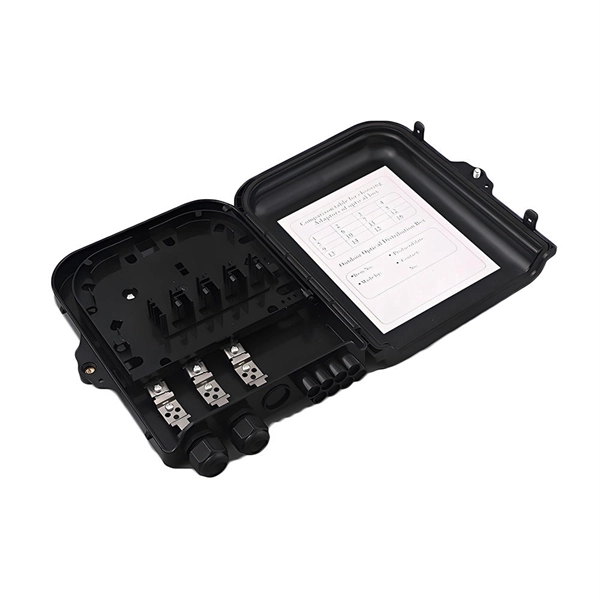

• If the socket has a back box, organize any slack fiber to prevent kinks or sharp bends .
• Test the connection using a fiber optic tester or network testing tool to verify signal integrity and performance .

Safety Tips

• Always wear safety glasses and gloves to protect against glass shards .
• Work in a clean, dust-free environment to avoid contamination.
• Never touch the fiber end-face with bare hands, and avoid looping or sharply bending the cable . Following these steps ensures a clean, secure, and high-performance fiber optic connection between your cable and the panel socket, minimizing signal loss and maintaining network reliability.
