Protective relays detect abnormal electrical conditions and command circuit breakers to isolate faulty equipment, ensuring safety, reliability, and system stability.

Overview of Relay Protection

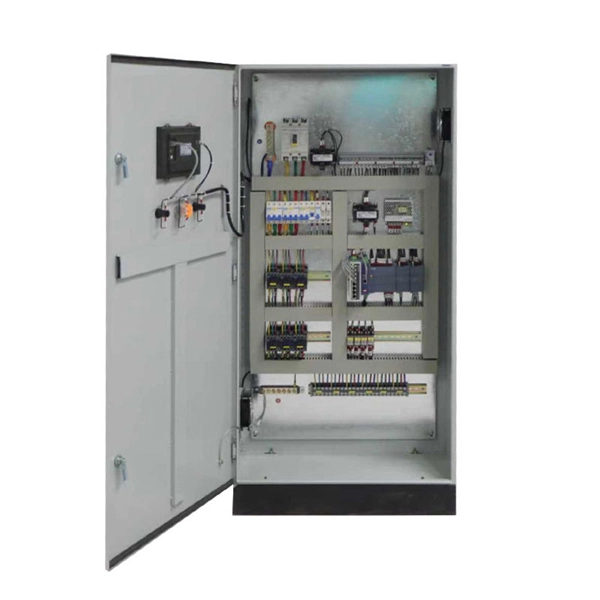

Protective relays are devices that monitor electrical quantities such as current, voltage, frequency, impedance, or differential values. When a fault or abnormal condition is detected, the relay sends a trip signal to a circuit breaker or other interrupting device to isolate the affected section, preventing equipment damage and maintaining system stability . Relays themselves do not interrupt current; they act as the decision-making element, while breakers perform the physical disconnection .

Types of Protective Relays

1. Electromechanical Relays: Operate using moving parts and magnetic forces; traditional but reliable for basic protection .
2. Static Relays: Use electronic components without moving parts, offering faster response and higher accuracy .
3. Numerical (Microprocessor-Based) Relays: Digital relays that provide advanced protection, monitoring, self-diagnostics, event recording, and communication capabilities .

Functional Relay Types

• Overcurrent Relay: Trips when current exceeds a preset limit, protecting against short circuits and overloads .
• Differential Relay: Compares currents at two points; operates when a difference is detected, commonly used for transformers and generators .
• Distance (Impedance) Relay: Operates based on line impedance, widely used for transmission line protection .
• Earth Fault Relay: Detects leakage currents to ground, protecting against single line-to-ground faults .
• Over/Under Voltage and Frequency Relays: Protect equipment from abnormal voltage or frequency deviations .

Equipment-Specific Protection

• Generators: Protected against stator and rotor faults, over-speed, loss of excitation, and short circuits using differential and overcurrent relays .
• Transformers: Differential relays prevent winding faults and overheating; overcurrent relays protect against external faults .
• Transmission Lines: Distance relays and directional relays isolate faults quickly to maintain system stability .
• Buses and Switchgear: Bus zone protection uses multi-input comparators and differential relays to detect faults within a bus section .

Protection Coordination and Methods

Effective relay protection requires coordination between relays and breakers to ensure selective isolation of faults. Key considerations include:

• Pickup settings and time delays to avoid unnecessary tripping .
• Breaker clearing time and trip circuit health to ensure timely fault isolation .
• Instrument transformer accuracy (CTs and PTs) for reliable relay operation .
• Communication-assisted schemes like wire pilot or carrier current protection for high-voltage networks .

Advantages of Modern Relay Protection

• Fast and selective fault detection reduces equipment damage and outage duration .
• Multi-function capability allows monitoring, protection, and communication in a single device .
• Self-diagnostics and event recording improve maintenance and system reliability .
• Compact size and reduced variety lower long-term operational costs . In summary, relay protection methods combine various relay types, functional schemes, and coordination strategies to detect faults, isolate faulty equipment, and maintain the safety and stability of electrical power systems .
