Proper installation of optical fiber cable requires careful handling, correct routing, adherence to bend radius and tension limits, and thorough testing to ensure optimal performance.

Planning and Site Survey

Before installation, conduct a site survey to identify all endpoints, intermediate equipment rooms, and potential obstacles such as HVAC ducts, steel beams, or sharp objects that could damage the cable. Design pathways with extra conduit space (25–40%) for future expansion and ensure compliance with local building codes and permits .

Cable Selection

Choose the appropriate fiber type based on distance and bandwidth requirements:

• Single-mode fiber: Small core, long-distance transmission (up to 10 km for 10 Gigabit Ethernet)
• Multimode fiber: Larger core, shorter distances (up to 550 meters for Gigabit Ethernet) Select armored or dielectric cables depending on environmental exposure, and consider LSZH sheathing for indoor installations .

Handling and Routing

Fiber optic cables are fragile and must be handled with care:

• Avoid sharp bends, twisting, or excessive pulling force
• Maintain the minimum bend radius specified by the manufacturer
• Use figure-8 loops when laying cable on surfaces to prevent twisting
• Avoid pulling over edges or applying mechanical pressure at crossing points
• Keep connectors clean and protected from dust or scratches at all times

Installation Techniques

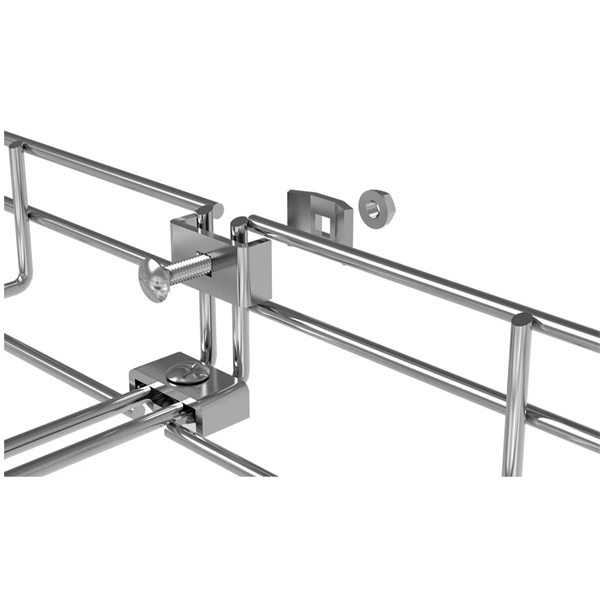

• Use conduits, innerducts, or tray systems for routing
• Employ cable-pulling equipment with tension monitoring to prevent fiber breakage
• Ensure protective material remains on the cable until installation, especially for outdoor runs longer than 24 hours
• Avoid stacking or crossing cables in a way that creates high-pressure points

Termination and Testing

• Terminate fiber ends with appropriate connectors using fusion splicing or mechanical connectors
• Clean all fiber end faces before connecting to prevent signal loss
• Test the installed fiber for attenuation, continuity, and signal integrity to ensure performance meets specifications

Safety and Best Practices

• Follow industry standards such as ANSI/NECA/FOA-301, TIA/EIA-568, and NEC Article 770
• Wear appropriate safety equipment when handling fiber
• Avoid exposing fibers to impacts or lateral forces, as even minor damage can degrade performance By following these steps and best practices, optical fiber installations can achieve reliable, high-performance networks while minimizing the risk of damage and signal loss.
