Fiber optic distribution frame (FDF) module termination provides a structured platform for terminating, connecting, and managing optical fibers, ensuring organized, scalable, and low-loss network connections.

Overview of FDF Module Termination

A Fiber Distribution Frame (FDF), also known as an Optical Distribution Frame (ODF), is a centralized platform designed to terminate, cross-connect, and manage optical fibers in both indoor and outdoor environments . It serves as the interface between incoming optical cables and active or passive network devices, providing a secure and organized environment for fiber connections.

Key Components

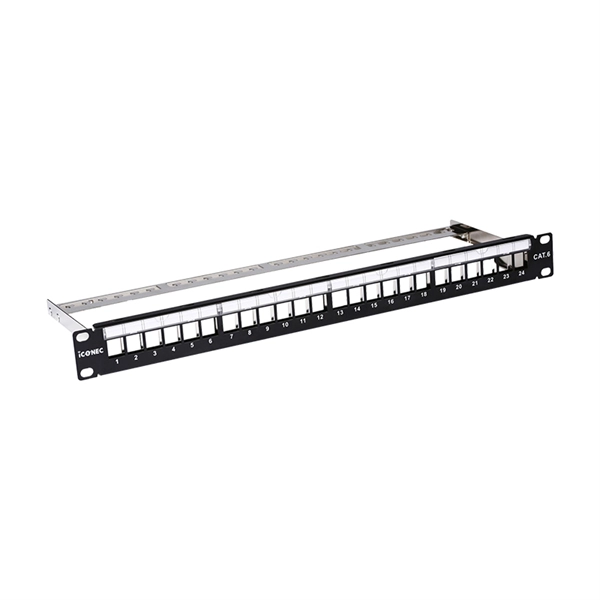

• Patch Panels / Modules: Modular units that house fiber adapters and connectors, allowing easy cross-connection and reconfiguration . They can be fixed or sliding types, with sliding modules providing easier access for maintenance .

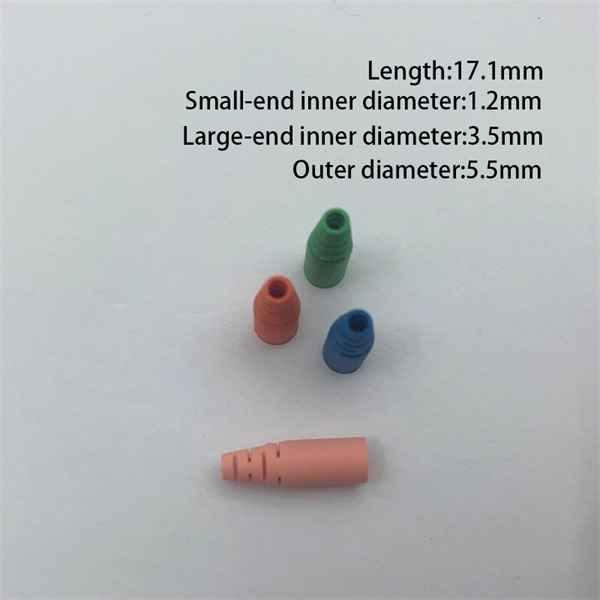

• Adapters and Connectors: Standard connectors such as LC, SC, or MPO are used to terminate pigtails from the fiber cables. Sliding adapter packs allow front and rear access for patch cord connections .
• Splice Trays: Protect spliced fibers and maintain proper bend radius, ensuring minimal signal loss .
• Cable Management Accessories: Rings, guides, and holders maintain neat fiber routing and prevent stress on fibers .

Termination Process

1. Cable Preparation: The outer sheath and strength members of the optical cable are mechanically fixed, and grounding protection is applied .

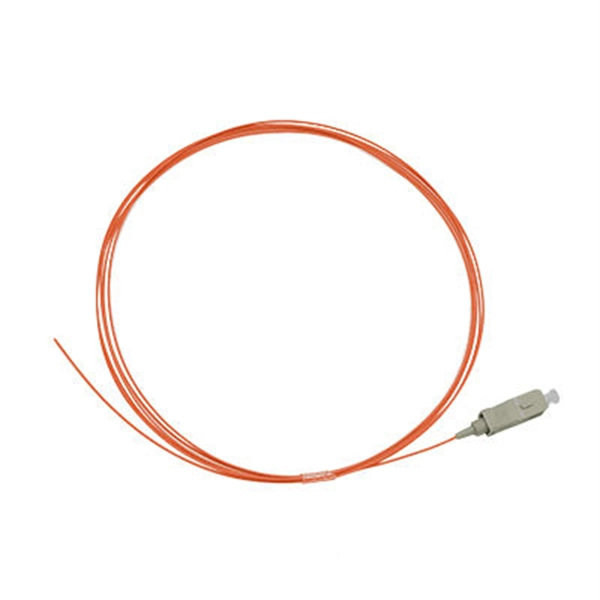

2. Fiber Splicing: Fibers are spliced to pigtails using fusion splicing or mechanical splicing, depending on distance and network requirements .
3. Connector Termination: Pigtails with connectors are plugged into adapters on the patch panel, enabling optical path connections to other fibers or devices .
4. Fiber Storage and Management: Excess fiber is coiled and stored securely in trays or modules to maintain bend radius and prevent damage .

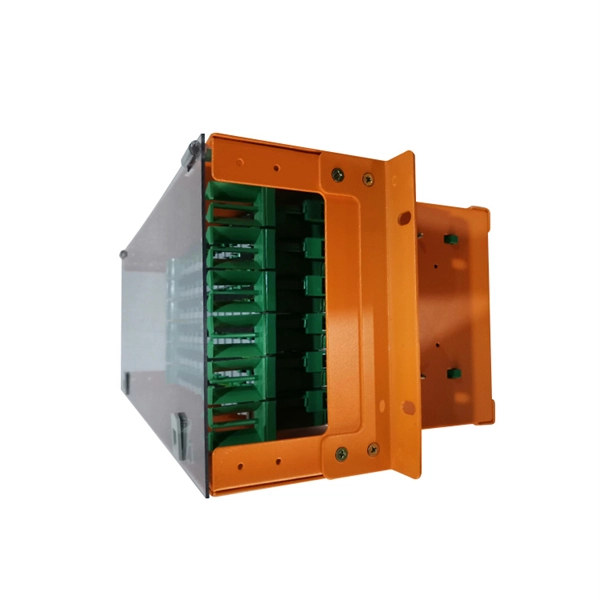

Modular and Scalable Design

FDFs can be rack-mounted or wall-mounted, with modular designs allowing selection of modules based on fiber count and network specifications . High-density modules support hundreds of fibers, and some blocks integrate additional functions like splitters, couplers, or WDMs for signal management . This modularity ensures scalability for future network expansion.

Best Practices

• Labeling: Clearly label all fibers and ports for quick identification and maintenance .
• Bend Radius Compliance: Maintain proper bend radius to prevent signal degradation .
• Regular Inspection and Cleaning: Inspect connectors and clean as needed to maintain low optical loss .

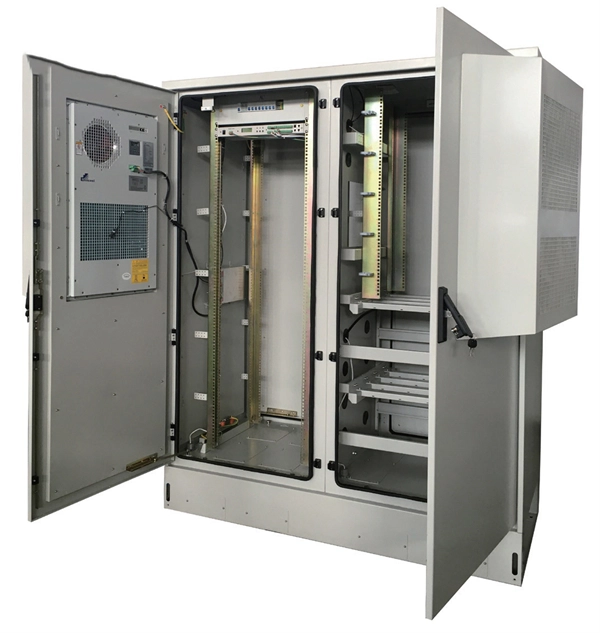

• Environmental Considerations: Use weatherproof enclosures for outdoor deployments and IP-rated closures for protection against moisture and dust .

Applications

FDF module termination is widely used in FTTH networks, data centers, and telecom facilities, providing structured cabling solutions that reduce installation and operational costs while enhancing network reliability and flexibility . By combining termination, splicing, and patching in a single frame, FDFs ensure efficient fiber management, easy maintenance, and scalable network growth.
