Installing an outdoor power distribution box requires careful planning, proper enclosure selection, adherence to electrical codes, and safe wiring practices to ensure reliable and weather-resistant power distribution.

Planning and Permits

Before installation, consult your local building or planning department to understand specific requirements for outdoor electrical panels, including placement, materials, and grounding standards. Most jurisdictions require an electrical permit to ensure the installation meets safety codes and will be inspected upon completion. All work should comply with the National Electrical Code (NEC), which sets baseline standards for clearances, wiring, and protective devices .

Selecting the Right Enclosure

Outdoor distribution boxes must withstand environmental exposure. Key considerations include:

• NEMA Rating: For general residential use, a NEMA 3R enclosure is standard, providing protection against rain, sleet, snow, and external ice formation. For harsher conditions, such as coastal or chemically exposed areas, a NEMA 4X enclosure offers superior corrosion resistance and protection against hose-directed water .

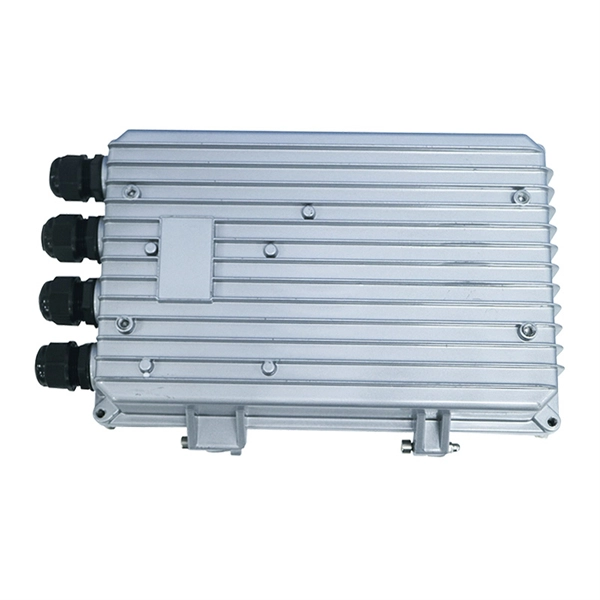

• Material: Non-metallic boxes (PVC or high-impact plastic) resist corrosion and are lightweight, while metal boxes (aluminum or galvanized steel) provide superior physical protection .
• Size and Amperage: Choose a box with sufficient circuit capacity for current and future loads, typically ranging from 4 to 36 circuit spaces. Ensure the amperage rating matches the total load it will serve .

Location and Mounting

Proper placement ensures safety and accessibility:

• Accessibility: Maintain clear access for maintenance, breaker resets, and emergency shut-offs. Avoid dense shrubbery or permanent obstructions .
• Clearance: NEC requires a 3-foot clear space in front, 30 inches width, and 6.5 feet vertical height around the panel .
• Protection from Damage: Position the box away from vehicles, lawn equipment, or other hazards .
• Proximity to Power Source: Place the box logically between the main service panel and the circuits it will supply to minimize feeder wire length . Mounting methods depend on the surface:
• Surface-mounted: Fixed directly to finished walls, suitable for masonry, brick, or stucco .
• Flush-mounted: Recessed into the wall, requiring mounting blocks or siding flanges to integrate with exterior cladding .

Wiring and Safety

• Circuit Breakers and Fuses: Install appropriately rated breakers or fuses for each circuit to prevent overloads and fire hazards .
• Wire Preparation: Strip insulation to the correct length and connect line, neutral, and ground wires to designated terminals, following color coding standards .
• GFCI Protection: NEC mandates GFCI protection for all outdoor receptacles to prevent electrical shock. This can be provided via a GFCI breaker or GFCI receptacle .
• Weatherproofing: Use in-use or bubble covers for receptacles in wet locations to maintain a seal even when devices are plugged in .
• Conduit and Cable: Use weather-rated cables or conduit systems to protect conductors from moisture and physical damage .

Final Steps

• Circuit Labeling: Clearly mark each circuit for easy maintenance and troubleshooting .
• Wire Management: Route wires neatly, secure with cable ties, and leave space for heat dissipation .
• Testing: Perform an insulation resistance test to verify proper installation before reconnecting power .
• Inspection: Have the installation inspected if required by local authorities to ensure compliance with safety codes . By following these steps, you can ensure that your outdoor power distribution box is safe, code-compliant, and durable, providing reliable power for outdoor equipment and amenities.
